Description:

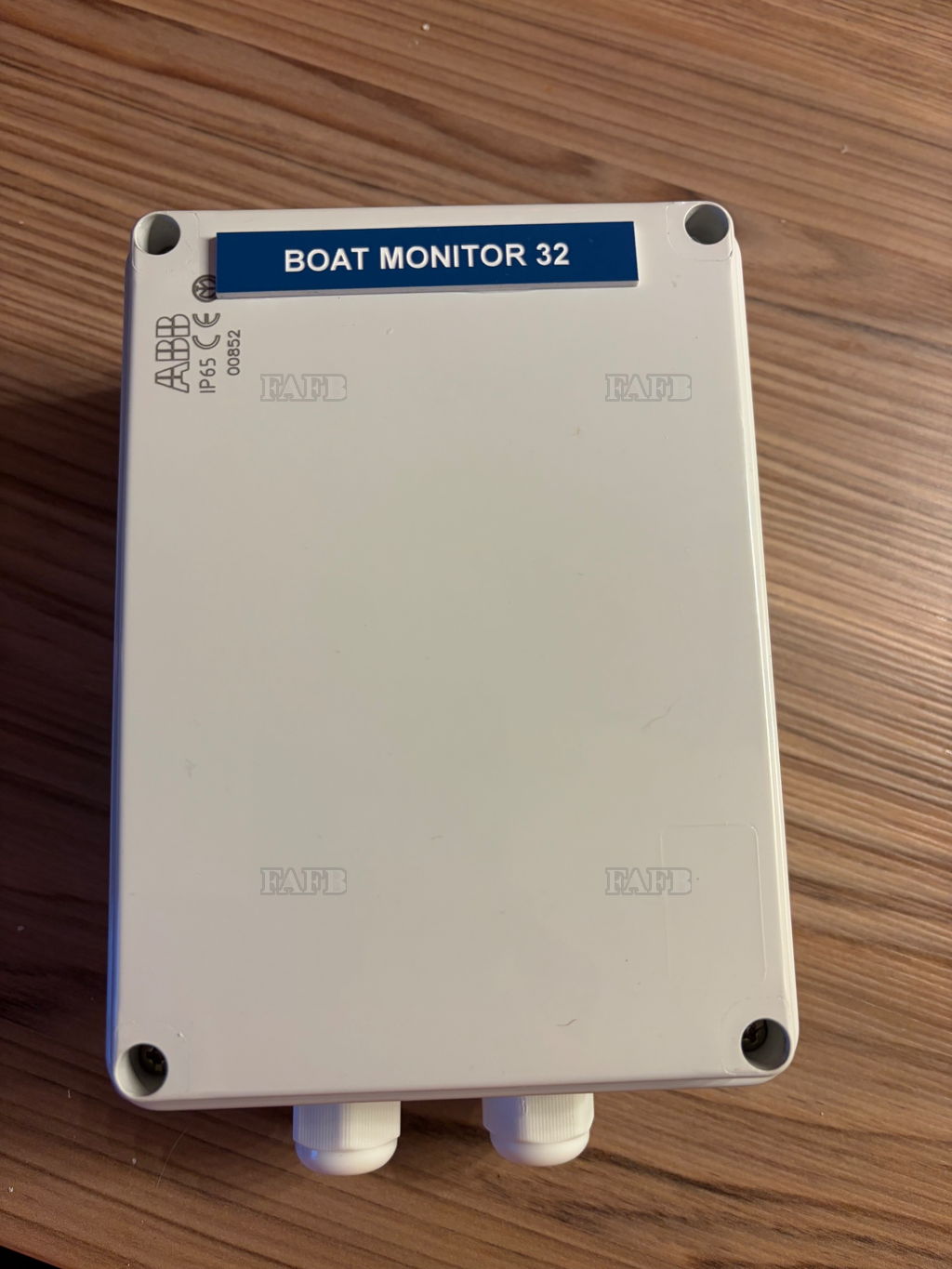

Remote Boat Monitor Hardware (Main board and relay board in an enclosure) and IOS App suitable for iPhones.

Live Monitoring – Check your boat’s status instantly, including bilge switch activity, battery voltage, cabin temperature, humidity, and fire panel signals.

Custom Alerts – Get notified via a message to your phone when conditions change, such as rising water levels, low batteries, or triggered alarms.

Remote Control – Manage onboard systems and relays directly from your phone. Start / stop bilge pumps, remotely start a refrigeration plant, remotely start a cabin heater etc.

Graphical Insights – View historical charts of voltage, temperature, and sensor data to spot trends and anticipate issues.

Fully Configurable - The device is configured from the app, this includes setting alarm values to send notifications to your phone, setting alarm valves to automatically trigger the outputs, manually changing output status changing Wifi Details etc.

Device Management – Pair multiple Boat Monitor 32 devices and switch between them with ease.


The hardware can:
Monitor 4 digital inputs (bilge alarms, fire panels, door switches).

Monitor 4 analogue inputs (battery voltages etc).

Control 4 relays to activate items such as bilge pumps, heaters, refrigeration plants, beacons, lights etc).

The hardware is used in conjunction with the Boat Monitor 32 iOS App (Android app is under development). The App is free (no subscription).

The hardware requires an internet connection to work.

The app can be downloaded below:
https://apps.apple.com/gb/app/boat-monitor-32/id6742724665
Click on About along the bottom bar and then scroll down and select demo mode to view a demo version.

Screenshots of the app are in the photos.

A link to the manual for the product can be found below.

https://docs.google.com/document/d/e/2PACX-1vRKL-Z5HuvMynrMlSpzcBPpj4DMcfgNamr5BwkqKTFeUcZR6jrqwT6tbOeiBMu7Q3NwKKL-fn6gnL66/pub

Installation is straight forward. As a minimum a connection to the boat battery is required.

Recent installations have included:
Monitoring yachts & fishing boats on moorings / pontoons.
Donkey engines circulating water to crab hold tanks when the vessel is unattended (alert notifications generated in the donkey engine stops).
Bilge pump overrun control and bilge pump alerts if running for an excessive period (indicating level switch failure).

The various inputs can be used for additional sensors such as salinity for a hold tank, temperature for a fish hold, refrigeration plant status.

Full technical support will be given to aid installation & configuration of the product.

Please get in contact to discuss how this product may be of benefit to your vessel or any additional configurations, inputs, outputs etc you may need.

Email - [email protected]
